With the Self Service / Self Cleaning function, you can now eliminate technicians coming to your house for maintenance, saving maintenance cost, and be able to enjoy water purity 365 days a year.
RENTAL
ONE-TIME PURCHASE (OUTRIGHT)
*Click on the button to claim MORE OFFER
Asking for price, rental fee, installation or customer service process?
1. Press and hold the Outlet Sterilize button at the top of the purifier for 3 seconds.
2. Place a container with a capacity of 300ml or greater below the water outlet.
3. When the container larger than 300ml has been prepared and placed, press the Dispense Water button. The sterilization process will take about 10 minutes.
*Hot water will be dispensed about 7 minutes later. Please ensure that this is inaccessible by children.
4. Once the sterilization of the water outlet is complete, please discard the hot water dispensed into the container.

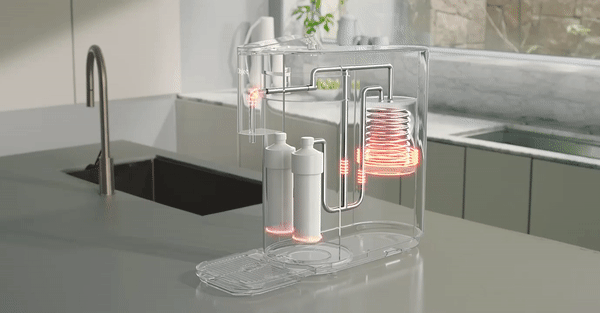

The water pipes for hot, ambient and cold water will be automatically sterilized with heat once per week. Once every 4 weeks, the cold water tank pipes will be included in the sterilization process, which will take about 30 minutes.
The water pipe will be automatically sterilized once per week, and on-demand sterilization can be performed manually.
To sterilize the water pipe, press and hold the Internal Sterilize button at the top of the purifier for 3 seconds.
*The scope of high temperature sterilization is limited to from filter to the pipe that runs from the filter to the water outlet.
If the valve where the source water is supplied or the dispense valve of the faucet is closed, the water pipe sterilization and water outlet sterilization features will not work. Please open the source water valve or the dispense valve.

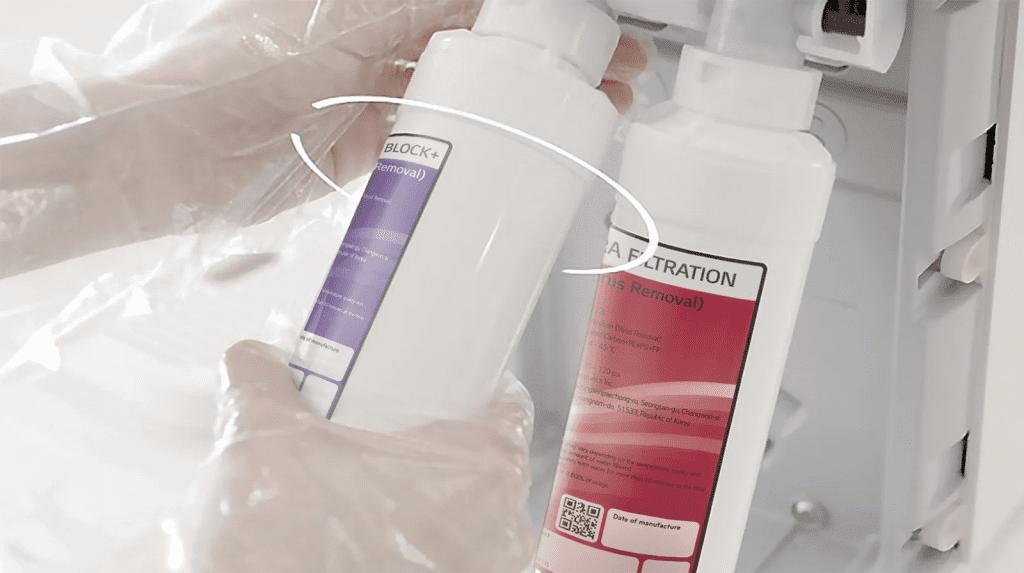

1. Pull out the draining tray to remove it from the product.
2. Push the moving tap to the end of left or right and open the filter cover.

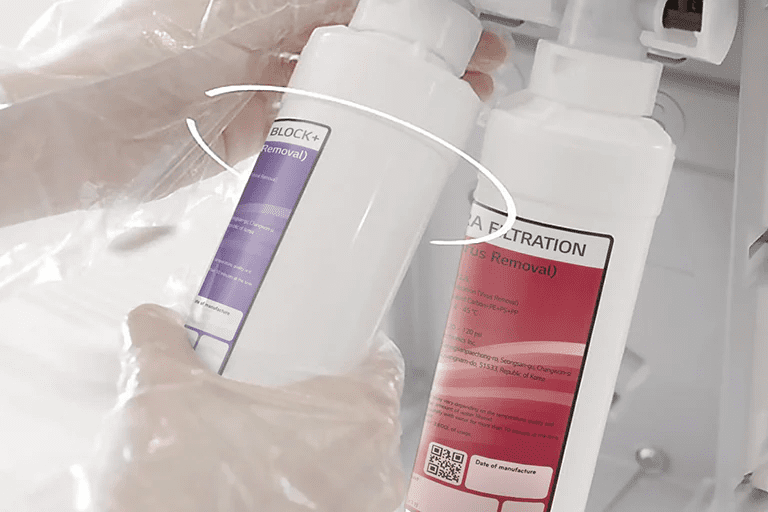

3. Grab the filter and lift it 90 degrees, and then turn it counterclockwise to separate it.
4. Insert the filter and turn it clockwise.
5. Place the filter cover on again. The filter cleaning process takes about 7 minutes.

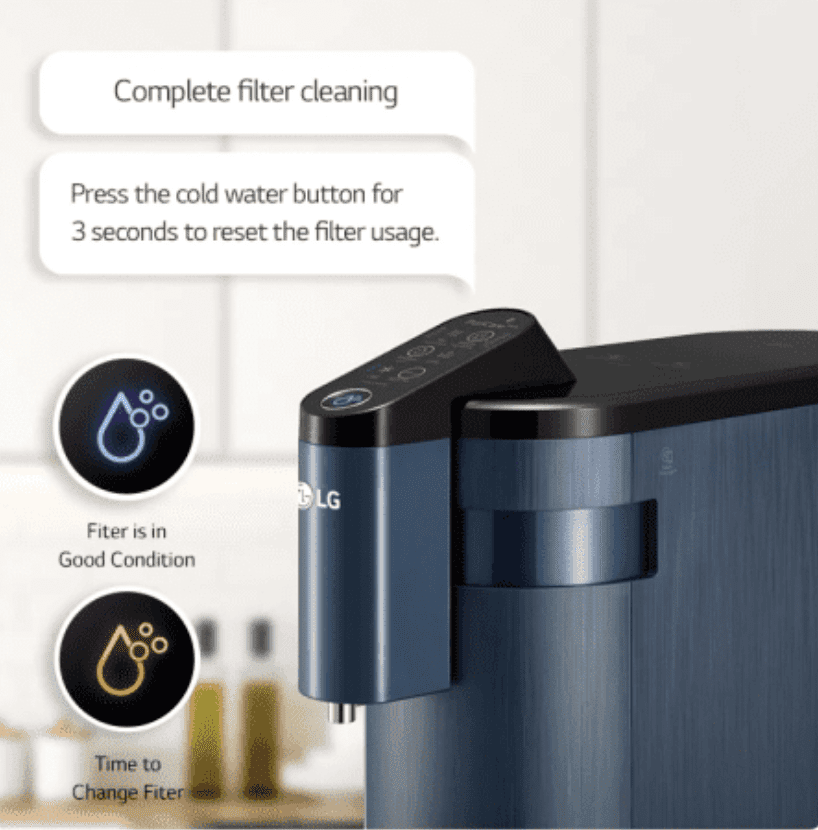

6 When the filter cleaning is complete, press and hold the Cold Water button for more than 3 seconds to reset the filter usage count.
If you close the source water valve during filter replacement, the filter cleaning will not work as the source water will not be supplied.
Do not close the source water valve, and leave it open while changing the filter. Close the filter cover to proceed with the filter cleaning process.
1. In the LG ThinQ App, press the water purifier icon.
2. Press the ‘ⓘ’ icon at the top-right corner of the screen, and press the Settings window.
3. In the Settings, select the product sound setting ‘>’ icon.
4. When ‘Use’ is selected, the ‘Button Sound’ and ‘Water Dispense Voice’ can be set.
5. Select the ‘>’ icon of Control Volume to adjust the volume.
If the draining tray is rotated sideways during separation, the draining tray will not be locked.
Please separate the tray while facing the front of the purifier.
If the draining tray is separated while the it is rotated, check the joining section (locking hole) by sight and connect the draining tray in after rotating it sideways.
If you have separated the draining tray while the tray is rotated, the filter cover handle hole may also be rotated, preventing easy opening of the filter cover.
Please check the joining section (locking hole) of the draining tray before connecting the draining tray from the front. Separate it again and open the filter cover.
Click on the button to claim MORE OFFER
RENTAL
ONE-TIME PURCHASE (OUTRIGHT)
36 months 0% instalment, RM69.44/month only

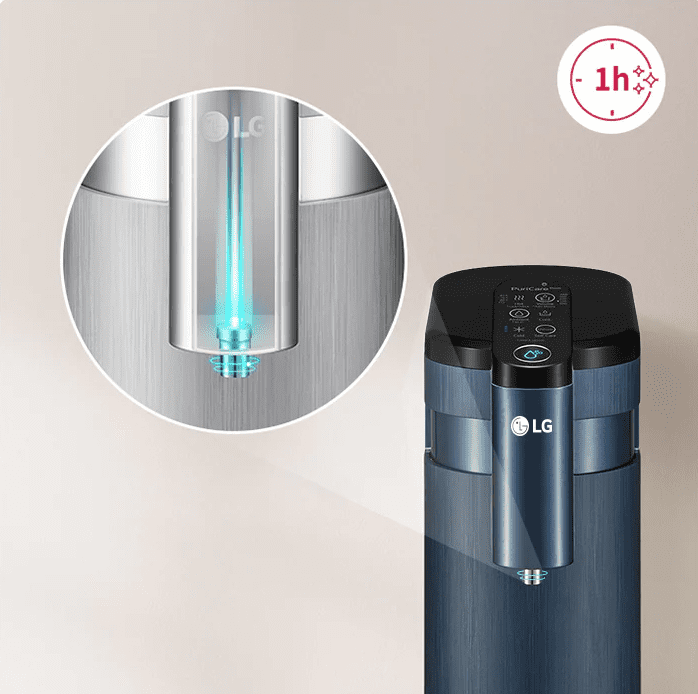

*UVnano is a compound word of UV (ultraviolet light) and nanometer (unit of length).
*The 99.99% sterilizing power of inside of water outlet is the test result conducted by Korean test institutes KTL(21.3), KCL(21.2) for UV-LED module based on the LG’s internal evaluation method. And there may be differences depending on the operating environment such as ambient temperature.
– Test method: At an ambient temperature of 25±5℃, after filling inside of water outlet with water containing test bacteria, operate ‘Self Care’ for 24 hours, and compare the degree of reduction in the number of viable bacteria before and after the sterilization function.
– Test bacteria: E. coli, S. aureus, P. aeruginosa (3 types of bacteria were selected among indicator bacteria for evaluation of sterilization performance and drinking water quality standards)
*The image of the product are for illustration purpose only and may differ from actual product.
*Issued by the Korea Institute for Water Technology Cerification(KIWATEC) according to the Law for the management of Drinking water. This is based on the quality inspection report, and may differ depending on the actual use environment.
– Heavy metals: remove more than the standard of mercury, lead, iron, aluminum, copper, arsenic, cadmium, zinc, manganese
– Remove more than the standard of 19 organic chemicals, 4 pesticides, 1 microorganism, and 4 mandatory water purification performance items
*The pore size of the UF is 0.1-0.3㎛, which can remove fine particles and bacteria larger than that size, and at the same time passes the ionic minerals below the size without removing it.
*Norovirus 99.99% removal is the test result measured under the limited conditions of Norogen (20.6) based on the LG’s internal evaluation method. And there may be differences depending on the operating environment.
(When 3,600L was passed through the filter at a flow rate of 2.0LPM, 0.6L of norovirus with a concentration of 1.0×10^4PFU/ml or higher was passed at a flow rate of 1.0LPM, and the amount of norovirus in the water that passed through was measured)
*The image of the product are for illustration purpose only and may differ from actual product.
The voice guidance will inform you when it’s time to replace the filter.

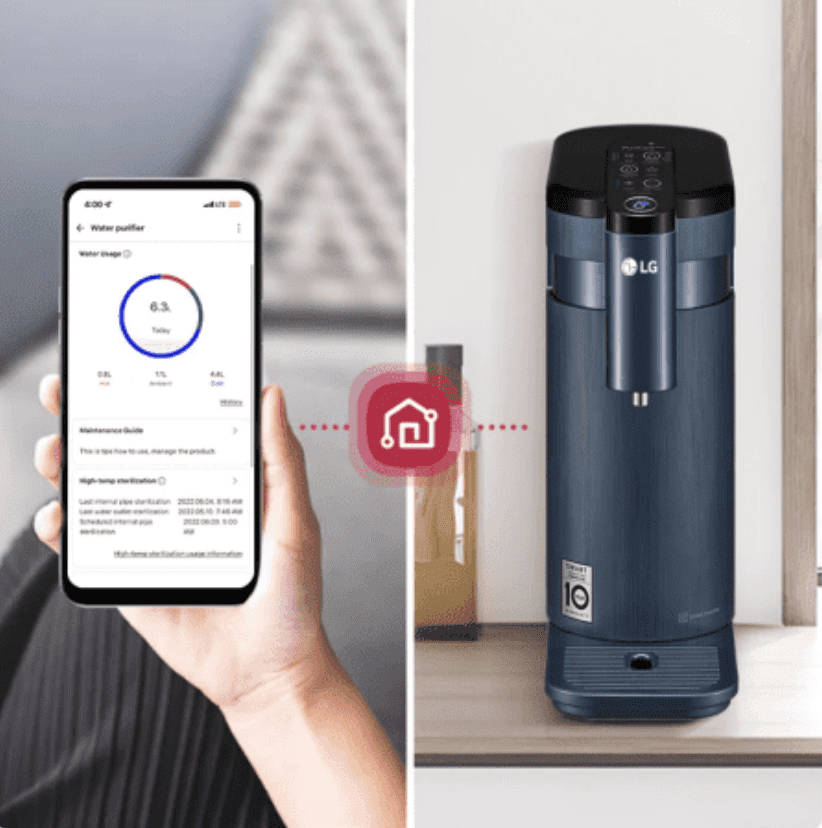

Directly check the status of the water purifier in real-time, from anywhere, using your smartphone
Press the internal sterilization and outlet sterilization buttons on the top of the product for more than 3 seconds.

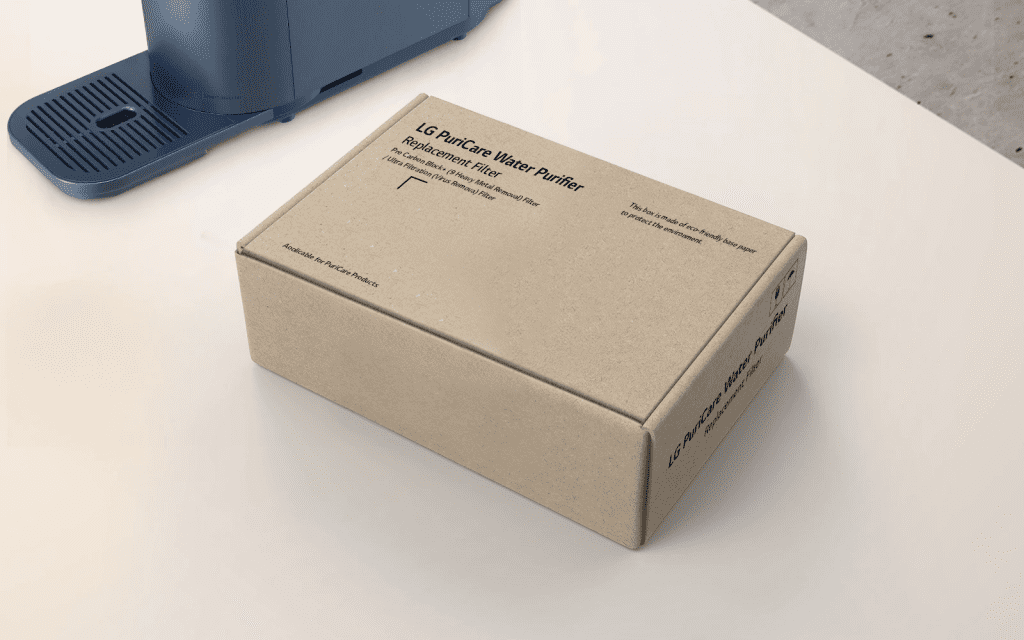

Simply replace the filter conveniently delivered on schedule.
|

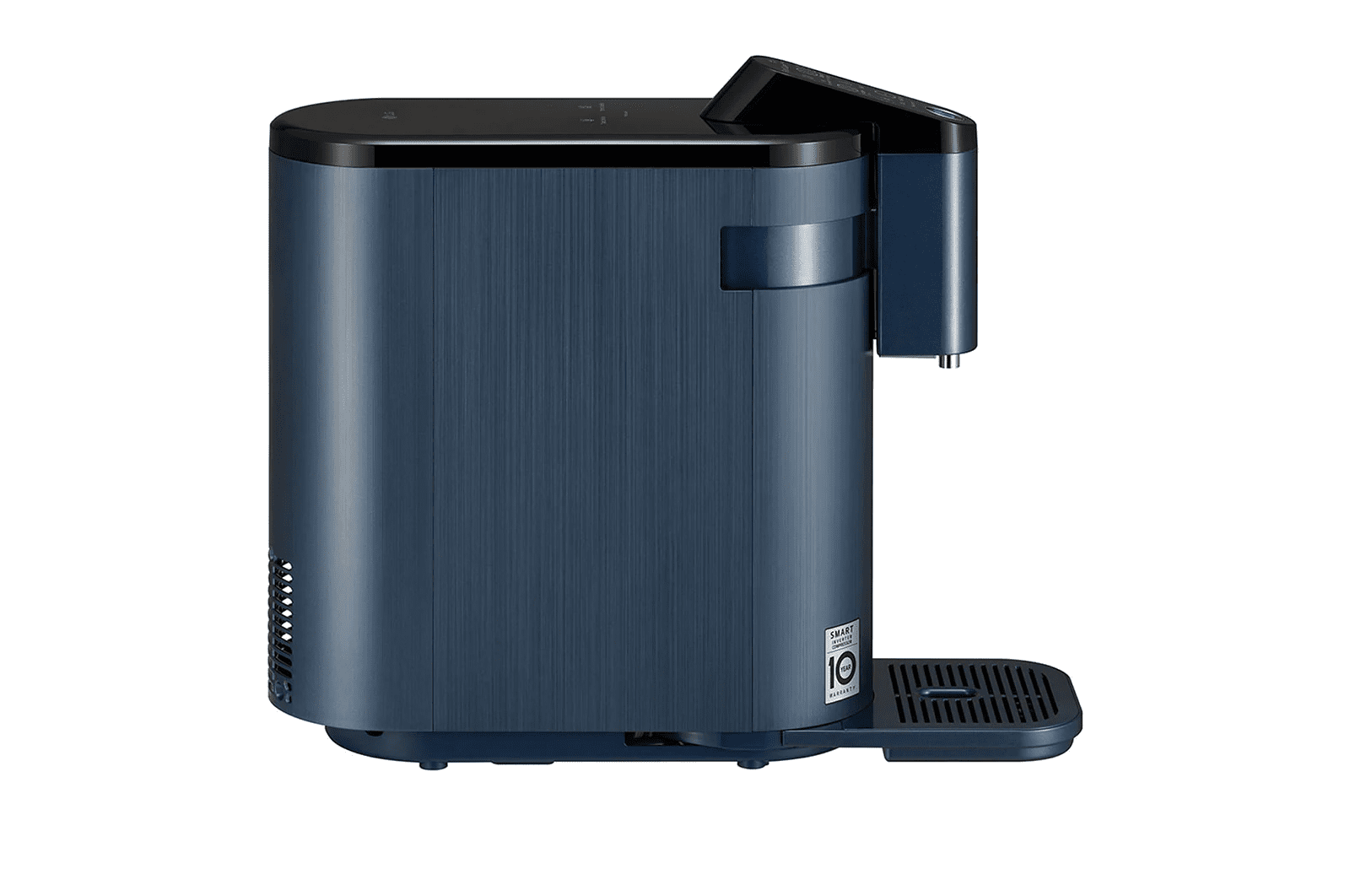

Model
|
WD516AN (Navy Blue)
|
|
|
Dimension
|
Dimension (W x H x D), mm – with Tray – 170 x 419 x 550
|
Dimension (W x H x D), mm – Without Tray – 170 x 419 x 410
|
|
Water Level
|
120 / 250 / 500 / 1000ml
|
|
|
Water Tap
|
180˚ Rotating Tap
|
|
|
Maintenance
|

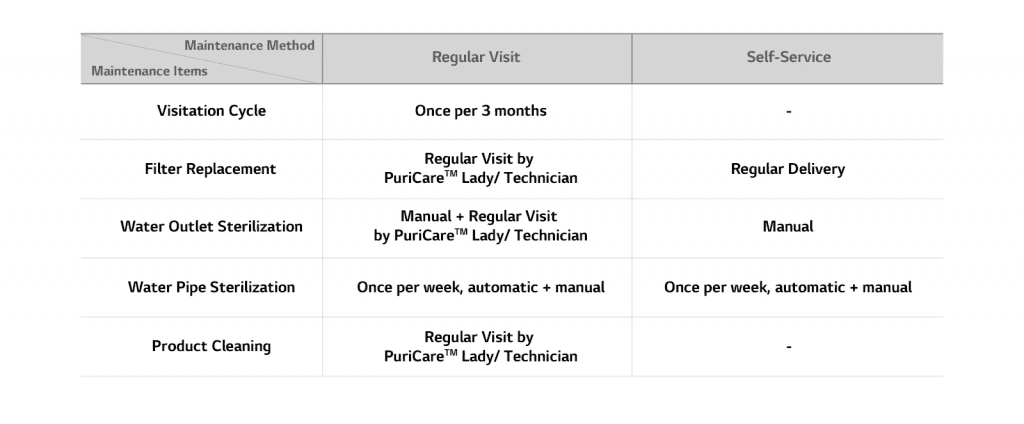

Self-Service / Regular Visit |
|
|
Water Supply
|
Instant Hot / Cold / Ambient
|
|
|
Filter Steps
|
UF Filtration System
|
· 1st – Remove 9 types of heavy metals |
|
|
|
· 2nd – Removal of various germs and fine particles |
|
|
|
· 3rd – Remove Norovirus (99.99%) |
|
|
· 4th – Removal of harmful contaminants | |
| Hygiene |
· Total Self-Service
· Auto Sterilization (Internal Sterilize, Outlet Sterilize)
· Easy Filter Replacement · Filter Subscription · UV-LED Sterilization |
|
|
CONVENIENCE
|
Hot Water Control |
40℃, 75℃, 85℃ |
|
Volume Control |
120ml, 250ml, 500ml, 1000ml
|
|
| Others |
Efficient Energy Saving |
· Up & Down Auto Moving Tap (Auto Cup Sensing)
· Left & Right Moving Tap Child Safety Lock Function 17cm Slim Design Flexible Installation (Horizontal / Vertical) Filter Change Alert Voice Guidance |
| Inverter Compressor | Smart Inverter Compressor (10 Years Warranty) |
